High definition Toughened Glass Laminated Furnace - Heat soak furnace – Fangding Detail:

TECHNICAL PARAMETER
Model Operation system Max processing glass size(mm) Holding Time(h) processing capacity(KG/cycle) Power(KW) Dimension( mm)
FD-HF2045 Siemens PLC 2000×4500 1-4 3000 300 7100×2500×3000
FD-HF2050 Siemens PLC 2000×5000 1-4 4000 380 7600×2500×3000
FD-HF2560 Siemens PLC 2500×6000 1-4 6000 540 8600×2500×3500
FD-HF2580 Siemens PLC 2500×8000 1-4 8000 715 10600×2500×3500
FD-HF2860 Siemens PLC 2800×6000 1-4 7500 540 8600×2500×3800

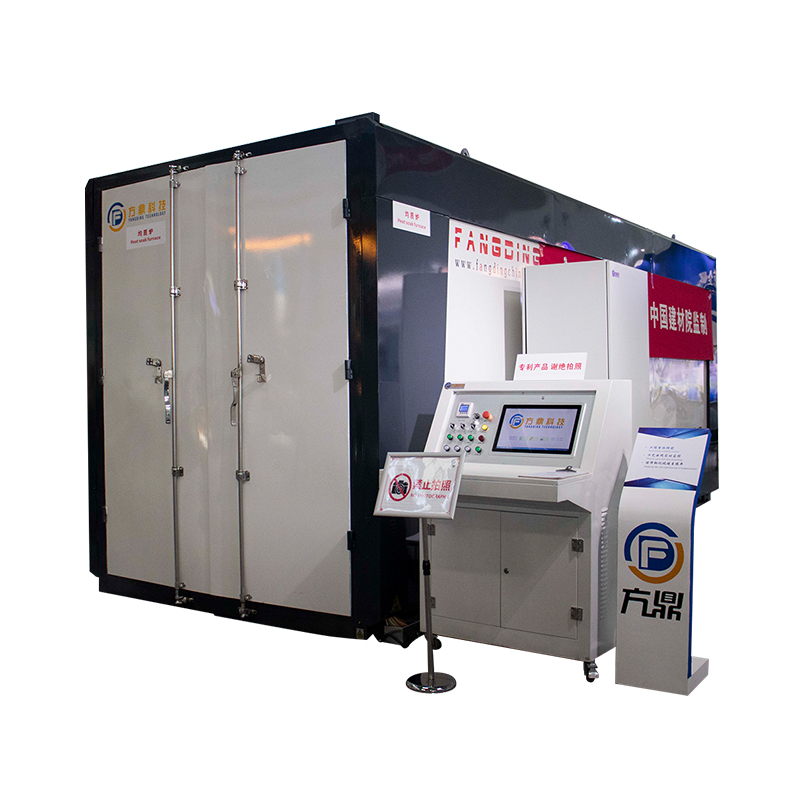

抠图_0000_IMG_8731

1.Uniform temperature
(Finned heating tube,32 heating tubes are distributed in two rows on the top of the furnace,heat fast and evenly)

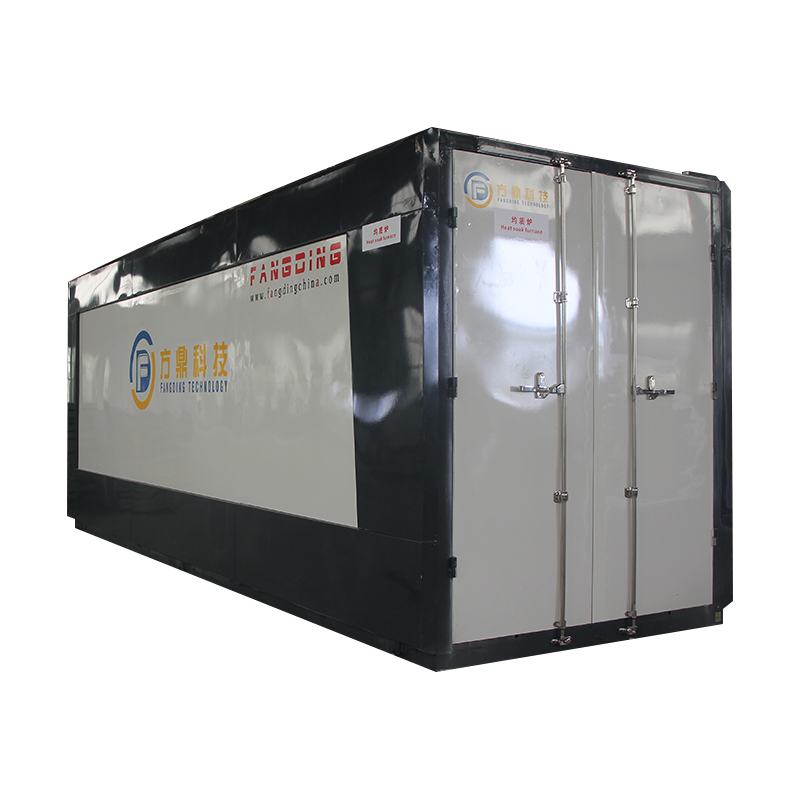

抠图_0002_IMG_4769

2.Real time monitoring
(There are 16 thermocouples in the furnace, 6 of which are evenly fixed on both sides of the furnace, and the other 10 are used to monitor the glass temperature in real time. )

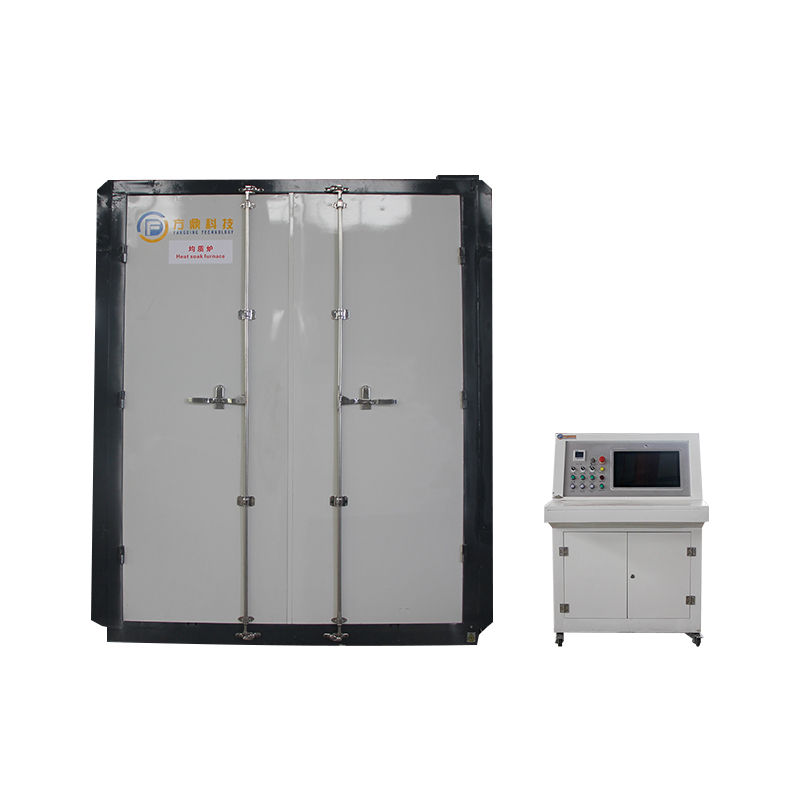

抠图_0003_图层 1

3.Good heat preservation
(The heat-insulation system adopts seamless welding,minimize the passage of heat.)

4.Easy system operation
(It can be linked to WiFi remote monitoring and one button printing)

6.Air duct thermal cycle
(Unique air duct design,close the door, open the fan to heat, hot air through the upper air duct to the doorway air duct, sucked into the furnace by the fan, continuous stable circulation heating)
