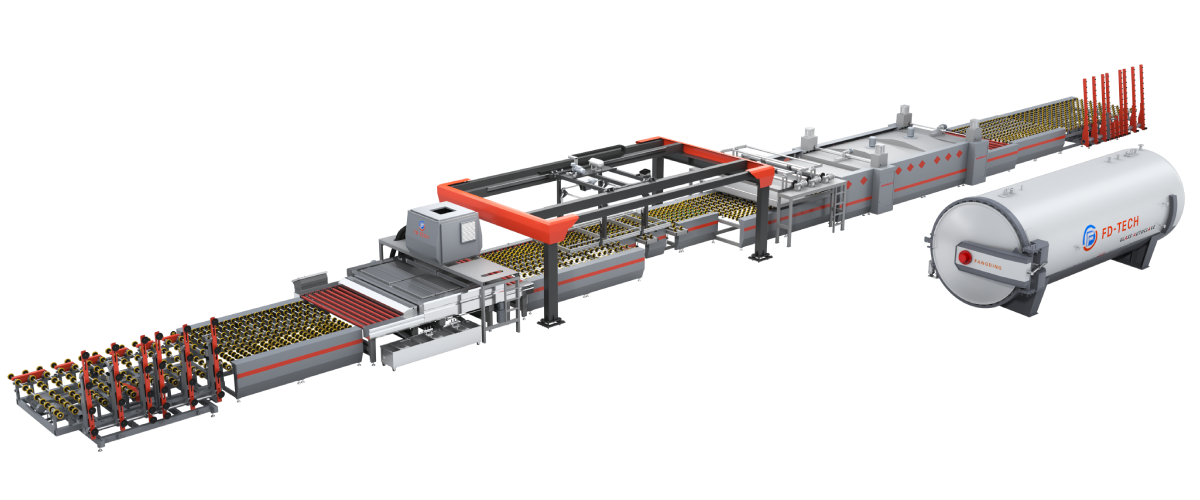

FULL AUTOMATIC LAMINATED GLASS PRODUCTION LINE
Technical features
1.All parts of the whole line adopt PLC centralized control system,frequency conversion,3 sets of HMI interface operation.
2.The special purpose part is equipped with encoder and servo motor to ensure stability and processing accuracy during production.The whole machine runs smoothly and reliably.
3.The whole production line is designed with high efficiency,energy saving,environmental protection,lower noise and other features.
4.Each part of the whole line can realize communication function with its neighboring parts,which is convenient to control and easy to operate.
5.The whole line adopts Siemens PLC centralized control system,main configurations are equipped with Delta Transducer and Schneider/Chint electrical components.
6.The whole line can realize automatic operation,labor-saving,safe and reliable,high efficiency and low energy consumption.

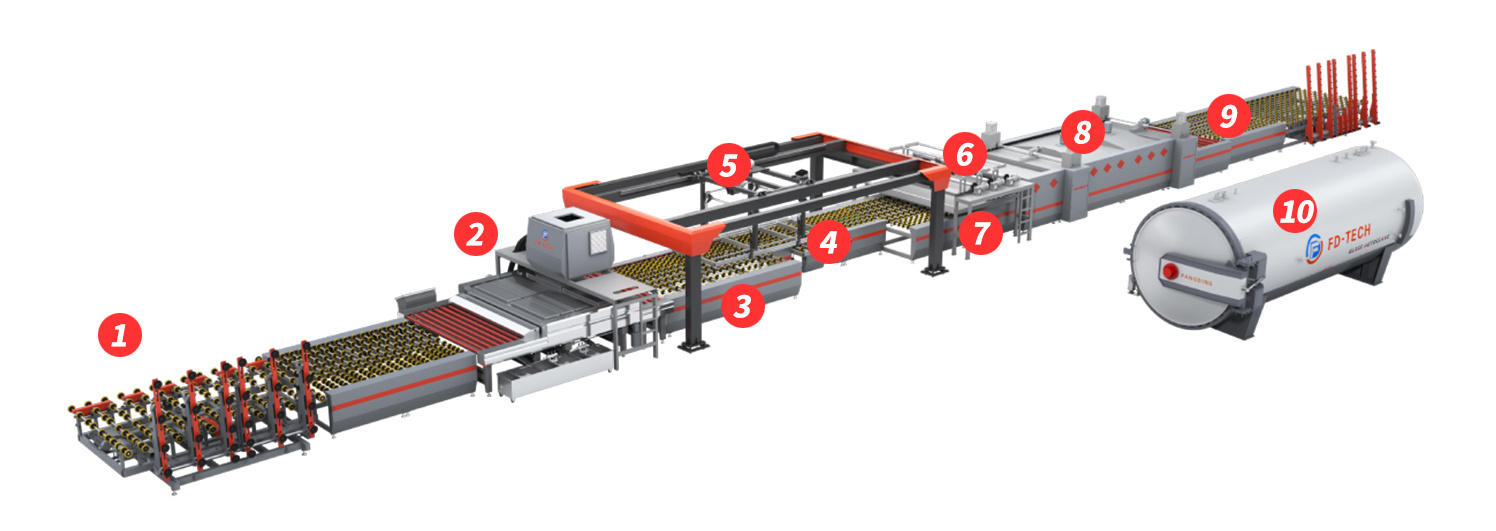

FORM
1.The automatic glass loading machine
2.The multi-functional glass washing & drying machine
3.High precision glass positioning conveyor
4.The double station glass combining machine
5.The automatic movable suction cup hanger
6.The horizontal 3-roller film storage machine
7.The frequency conversion transition conveyor
8.The infrared roller pressing machine
9.The flip-type glass unloading machine
10.The glass autoclave

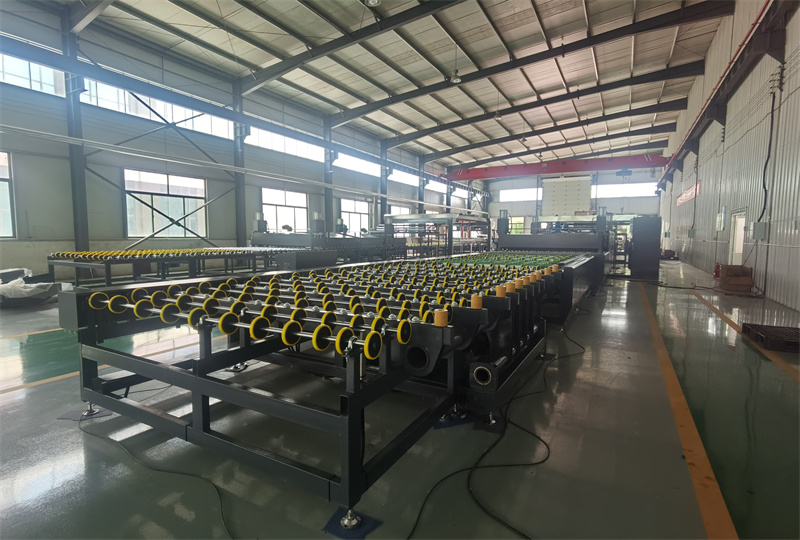

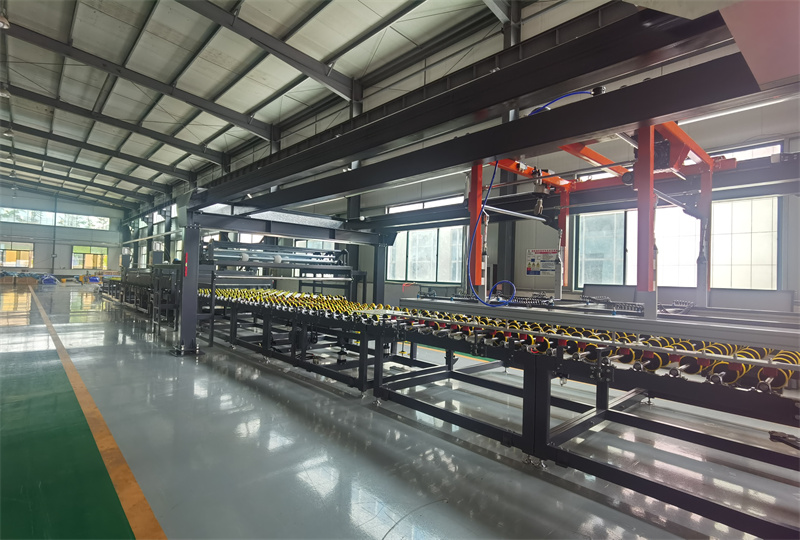

Production process of laminated glass
After passing by the automatic loading table,glass washing and drying machine,high-precision positioning conveyor,double-station glass combining machine,frequency conversion transition conveyor,infrared roller pressing machine,and flip-type unloading machine in a horizontal way,the glass is processed as semi-finished laminated glass,and then finished glass is processed by the autoclave.
Company strength
Fangding Technology Co., Ltd. was established in 2003 and is a high-tech enterprise specializing in the research and development, production, sales, and service of laminated glass equipment and laminated glass intermediate films. The company's main products include EVA laminated glass equipment, intelligent PVB laminated glass production line, autoclave, EVA, TPU intermediate film. At present, the company has a pressure vessel license, ISO quality management system certification, CE certification, Canadian CSA certification, German TUV certification and other certificates, as well as hundreds of patents, and has independent export rights for its products. The company participates in well-known exhibitions in the global glass industry every year and allows international customers to experience Fangding's design style and manufacturing process through on-site glass processing at the exhibitions. The company has a large number of skilled senior technical talents and experienced management talents, dedicated to providing a complete set of solutions for laminated glass technology for glass deep processing enterprises. Currently, it serves more than 3000 companies and multiple Fortune 500 enterprises. In the international market, its products are also exported to many countries and regions such as Asia, Europe, and the United States.
Customer feedback
For many years, the products sold have won the trust and praise of customers both domestically and internationally with high-quality products and sincere service.
Delivery site
During the shipping process, we will package and cover the equipment appropriately to avoid any unexpected situations and ensure that the equipment arrives at the customer's factory in good condition. Attach warning signs and provide a detailed packing list.
Fangding Service
Pre sales service: Fangding will provide equipment models suitable for customers based on their needs, provide technical information on relevant equipment, and provide basic design plans, general drawings, and layouts when quoting.
In sales service: After the contract is signed, Fangding will strictly implement each project and relevant standards for each production process, and communicate with customers in a timely manner about equipment progress to ensure that customer requirements are met in terms of process, quality, and technology.
After sales service: Fangding will provide experienced technical personnel to the customer's site for equipment installation and training. At the same time, during the one-year warranty period, our company will provide corresponding equipment maintenance and repair.
You can fully trust us in terms of service. Our after-sales personnel will promptly report any problems encountered to our technical personnel, who will also provide corresponding guidance.
